Seized Dampers and an Undersized Transformer Were Killing This Zoning System

When a zoning system starts acting up, most homeowners assume the thermostat is the culprit. Sometimes it is. But a lot of the time, the problem is buried deeper - and that was exactly the case here.

The transformer feeding this system was undersized. That might sound like a minor detail, but it's not. The transformer is what powers the zone control board and the dampers. When it can't deliver enough voltage, the whole system struggles. Dampers don't open and close the way they should, zones get inconsistent airflow, and you end up with rooms that are too hot or too cold no matter what you set the thermostat to.

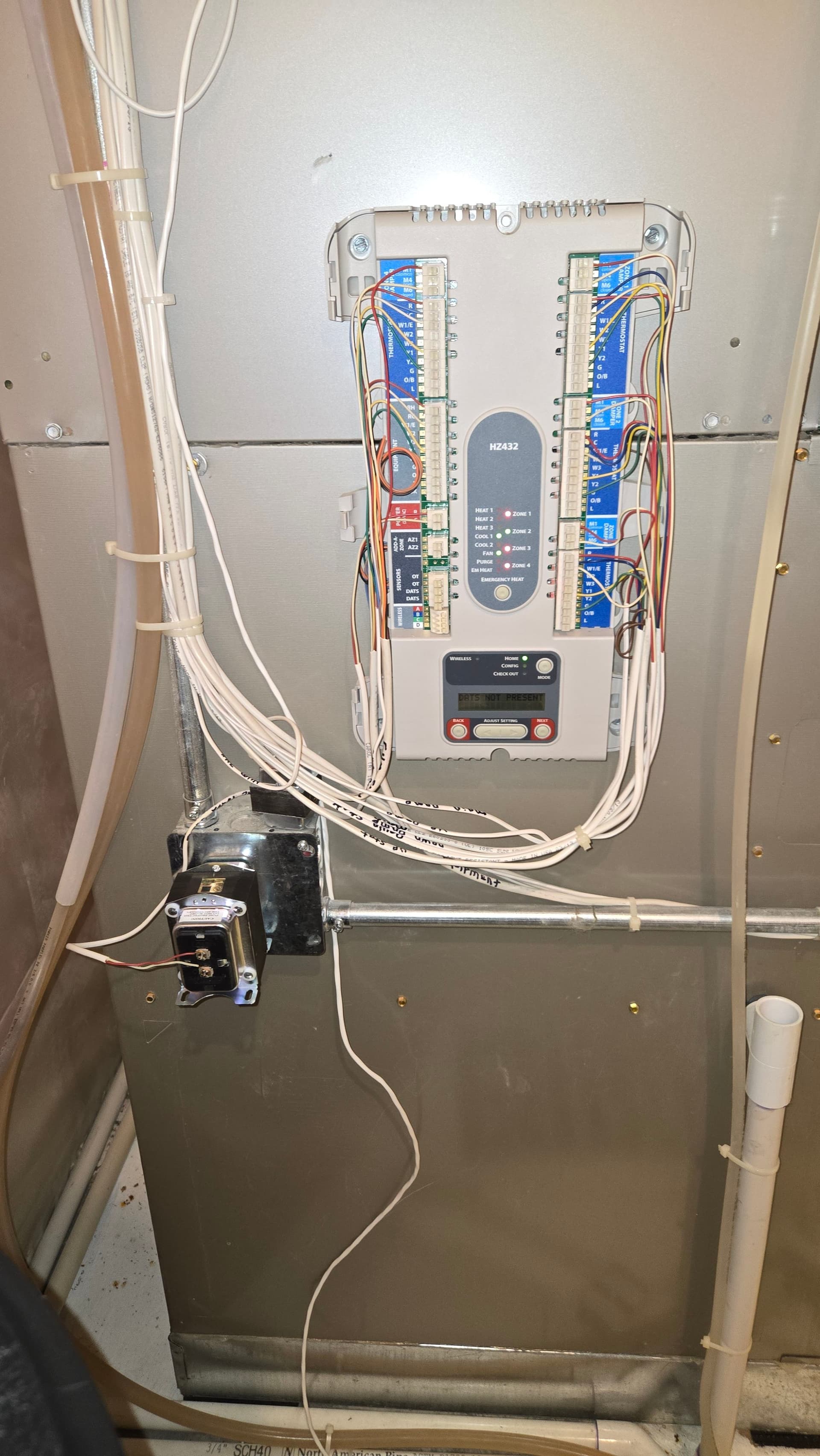

We swapped out the transformer and then turned our attention to the dampers. Out of six, four had completely seized up - meaning they weren't moving at all. A seized damper is essentially a locked door. Air either gets through or it doesn't, and you lose all control over where conditioned air goes in the house. We replaced all four and got everything communicating properly with the Honeywell HZ432 zone control board.

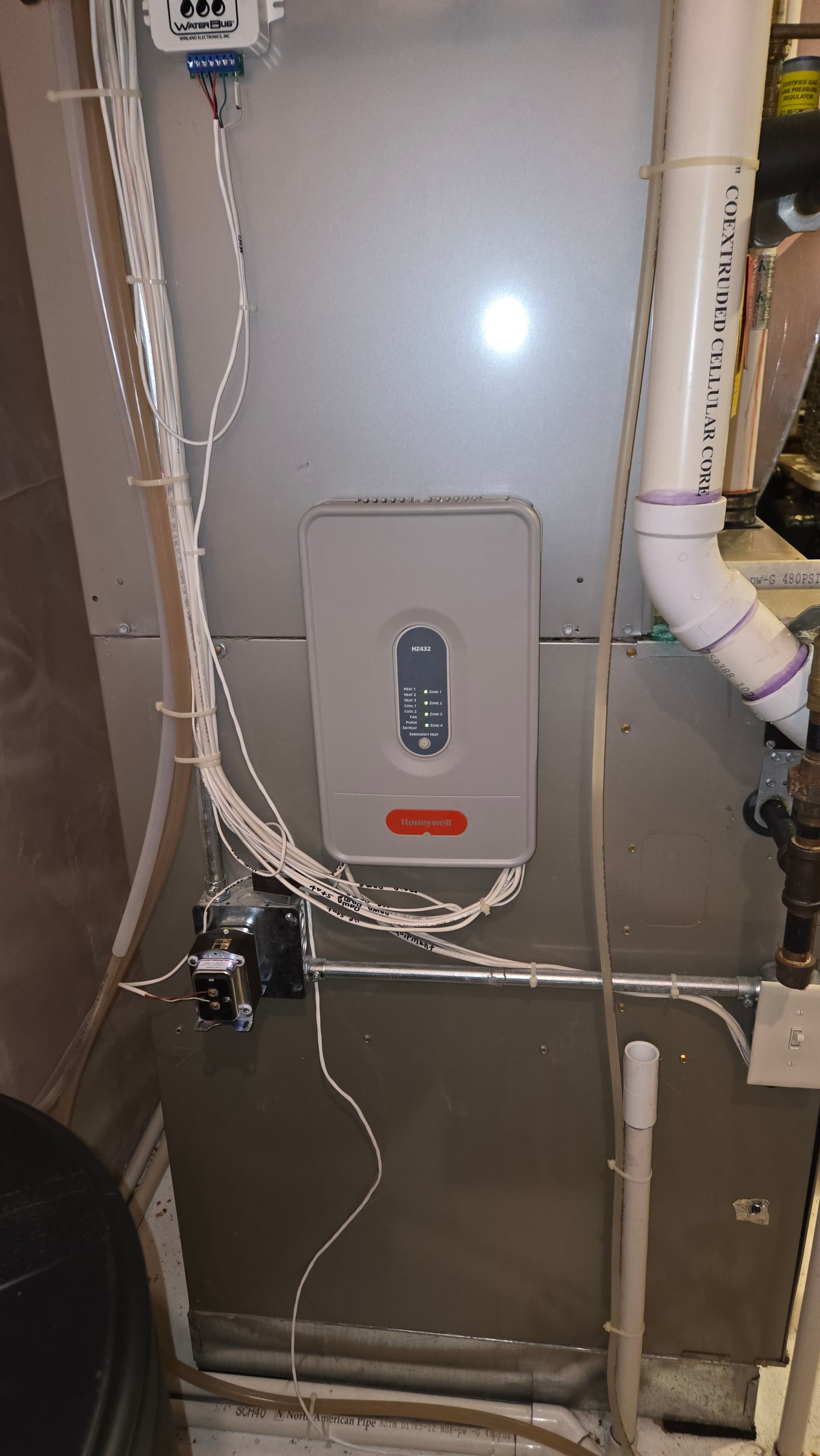

The HZ432 is a solid piece of equipment. It manages up to four zones and handles the coordination between your thermostats, dampers, and HVAC equipment. When it's paired with the right transformer and working dampers, it does its job quietly and reliably. The problem is that even a good control board can't compensate for failed components downstream.

Zoning systems have a lot of moving parts, and when one piece fails, others tend to follow. If you've noticed uneven temperatures, rooms that won't cool down, or a system that seems to run constantly without actually doing much - that's worth having looked at. It may not be your equipment. It might just be a component that's given out.
